Base Isolation Seismic Design in Winnipeg: Adapting to Lake Agassiz Clays

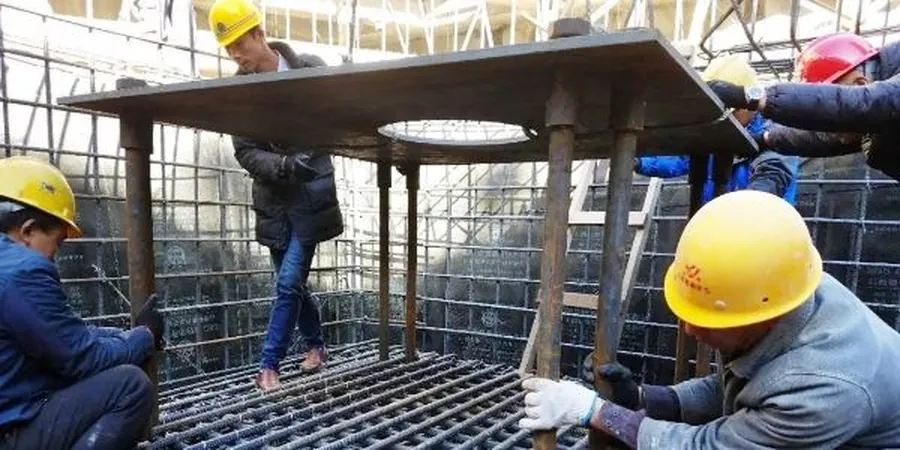

Winnipeg’s urban fabric sits squarely on the bed of the prehistoric Lake Agassiz, a geological inheritance that left behind 15 to 20 metres of compressible, laminated lacustrine clay blanketing the limestone bedrock. Every high-value or post-disaster structure planned downtown or near the Red River must confront this soft, vibration-amplifying soil profile. The National Building Code of Canada assigns the city a moderate seismic hazard, but the deep clay basin can stretch ground motion periods and magnify long-period energy, exactly the frequency range that threatens mid-rise framed buildings. A seismic microzonation study clarifies how the basin geometry modifies the uniform hazard spectrum, feeding directly into the base isolation design parameters. Rather than chasing strength, the engineering logic here shifts toward decoupling the superstructure from the ground. When the clay basin begins to roll during a distant intraplate event, an isolation interface with lead-rubber or friction pendulum bearings transforms the structure’s fundamental period, pulling it away from the amplified basin resonance. The approach pairs naturally with a solid liquefaction assessment because pockets of saturated fine sand occasionally interbed with the clay at depth, and any loss of bearing under the isolation pedestal compromises the entire strategy.

In Winnipeg's deep clay basin, base isolation shifts the structural period past the basin resonance, turning a geological liability into an engineered damping advantage.

Methodology and scope

What we observe repeatedly in Winnipeg is not the absence of seismic hazard but a mismatch between conventional fixed-base design assumptions and the real dynamic behaviour of the Lake Agassiz clay. A standard response spectrum can underestimate spectral acceleration in the 1.0 to 2.0 second range once the soft-soil amplification kicks in. Base isolation design for this city therefore begins with a site-specific ground response analysis using borehole shear-wave velocity data; the result is a design spectrum and a set of floor response spectra tailored to the isolation period. The design team selects isolator properties—effective stiffness, yield strength, characteristic strength—to achieve a target displacement of 300 to 500 mm under the 1-in-2475-year event, while keeping the superstructure drift below the 1.0% limit for immediate occupancy. Prototype testing follows the ISO 22762 standard, with full-scale bearings subjected to three cycles of the maximum considered earthquake displacement plus wind-and-thermal serviceability checks. The isolation interface also demands a moat wall and flexible utility connections, details that are easier to coordinate when the geotechnical baseline comes from a detailed CPT test campaign that captures the undrained shear strength profile without sample disturbance. In our experience, combining CPT soundings with laboratory cyclic simple shear on undisturbed Shelby-tube samples gives the most reliable backbone curve for the time-history analyses that the City of Winnipeg increasingly expects for essential facilities. The isolation system is not a single component: it is a design philosophy that ties the structural engineer, the geotechnical consultant, and the testing laboratory into one coordinated workflow.

Local considerations

A six-storey medical office building on the former floodplain near Confusion Corner illustrates the risk chain clearly. The initial proposal called for a conventional reinforced concrete moment frame on a stiff raft, with the geotechnical report showing undrained shear strength of only 35 kPa in the upper eight metres. A probabilistic seismic hazard analysis revealed that the uniform hazard spectrum at a 2% probability in 50 years would impose a base shear that pushed the frame into a costly and brittle retrofit scenario before construction even began. The design team pivoted to a base isolation scheme with 28 lead-rubber bearings. Even with the isolators, the greatest residual risk lay in the interface between the isolation plane and the soft clay: differential settlement of the pedestals had to be limited to 5 mm across the grid, which demanded a rigorous stone columns ground improvement programme beneath the foundation mat. The lesson from that project, and several others we have reviewed along the Assiniboine River corridor, is that isolation design in Winnipeg cannot be a plug-and-play exercise. It must be built on a foundation of site-specific dynamic soil properties, tested isolators, and continuous monitoring of the moat gap during the operational life of the building.

Technical parameters

Parameter	Typical value
Target isolation period (T_iso)	2.5 – 3.5 s (above basin predominant period)
MCE_R design displacement	300 – 500 mm (site-specific, NBCC 2020)
Isolator type (common)	Lead-rubber bearing (LRB) or friction pendulum (FPS)
Superstructure drift limit	≤ 1.0% inter-story (Immediate Occupancy)
Prototype testing protocol	ISO 22762:2018, 3 cycles at MCE displacement
Moat wall clearance	≥ 1.2 × MCE displacement + 150 mm
Soil profile class (typical)	Class E per NBCC Table 4.1.8.4.A
Wind serviceability check	Zero residual displacement under 50-year wind

Associated technical services

Site-Specific Ground Response & Isolation Parameter Development

We perform one-dimensional and two-dimensional equivalent-linear site response analyses using borehole shear-wave velocity profiles calibrated to the glacial Lake Agassiz stratigraphy. The output is a design acceleration spectrum, floor response spectra, and target isolator properties (effective period, effective damping, characteristic strength) that comply with NBCC 2020 and CSA A23.3 Annex N. The package includes the geotechnical design report required for the City of Winnipeg's permitting process.

Geotechnical Baseline for Isolation Foundation & Moat Interface

This service addresses the foundation demands unique to isolated structures: bearing capacity under the isolation pedestals, differential settlement control, and moat wall earth pressure. We combine in-situ CPT soundings, laboratory cyclic testing, and numerical modelling to confirm that the clay subgrade can support the concentrated loads from lead-rubber or friction pendulum bearings without compromising the isolation plane geometry.

Applicable standards

NBCC 2020 – Part 4, Seismic Design (Division B, Article 4.1.8), CSA A23.3:2019 – Design of Concrete Structures, Annex N (Base Isolation), ISO 22762:2018 – Elastomeric Seismic-Protection Isolators, ASCE 7-22 – Chapter 17, Seismic Isolation (referenced for testing protocols), ASTM D7400 – Standard Test Methods for Downhole Seismic Testing

Frequently asked questions

What is the typical cost range for a base isolation design package for a Winnipeg project?

For mid-rise essential buildings in Winnipeg, the integrated geotechnical and isolation design package generally falls between CA$6,180 and CA$11,180, depending on the number of boreholes, the complexity of the ground response analysis, and the isolator prototyping requirements. The final scope is always confirmed after a preliminary site review.

How does the Lake Agassiz clay affect the selection of the isolation period?

The deep, soft clay tends to amplify ground motion in the 0.8 to 2.0 second range. We target an isolation period of 2.5 to 3.5 seconds to place the structure well above the basin's predominant period, reducing spectral acceleration demand and avoiding resonance. Site-specific shear-wave velocity measurements are essential to confirm this target.

Which NBCC provisions govern base isolation design in Winnipeg?

The NBCC 2020 addresses seismic isolation in Part 4, Article 4.1.8, with detailed design and testing requirements referenced through CSA A23.3 Annex N. For the geotechnical side, the site classification follows Table 4.1.8.4.A, and ground motion parameters come from the national seismic hazard model. Prototype testing follows ISO 22762, which is harmonized with the Canadian code.
